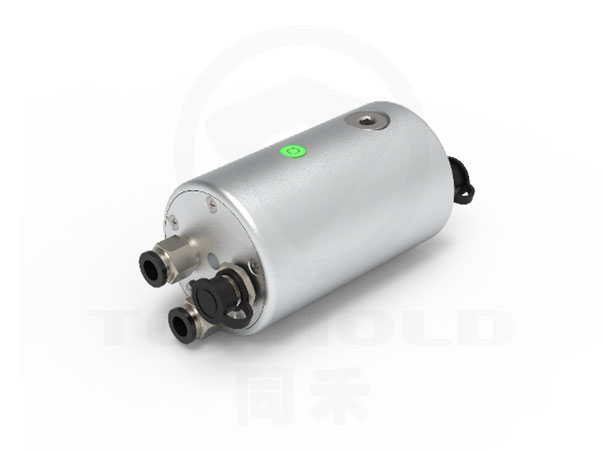

Differential Pressure Settlement Gauge

TH-STC2000

Product Overview

The differential pressure settlement gauge system mainly consists of a differential pressure settlement gauge (measuring point), connecting cables (including data bus, water pipes, and air pipes), a settlement reference tank, and a universal data acquisition unit. The differential pressure settlement gauge is equipped with an industrial-grade pressure sensor and operates on the differential pressure principle. It can be installed on the surface of structures or embedded deep within soil, making it suitable for settlement monitoring in buildings, slopes, tunnels, subgrades, and other structures.

Advantages

Parameters

For detailed product specifications, please contact our sales team for further discussion.

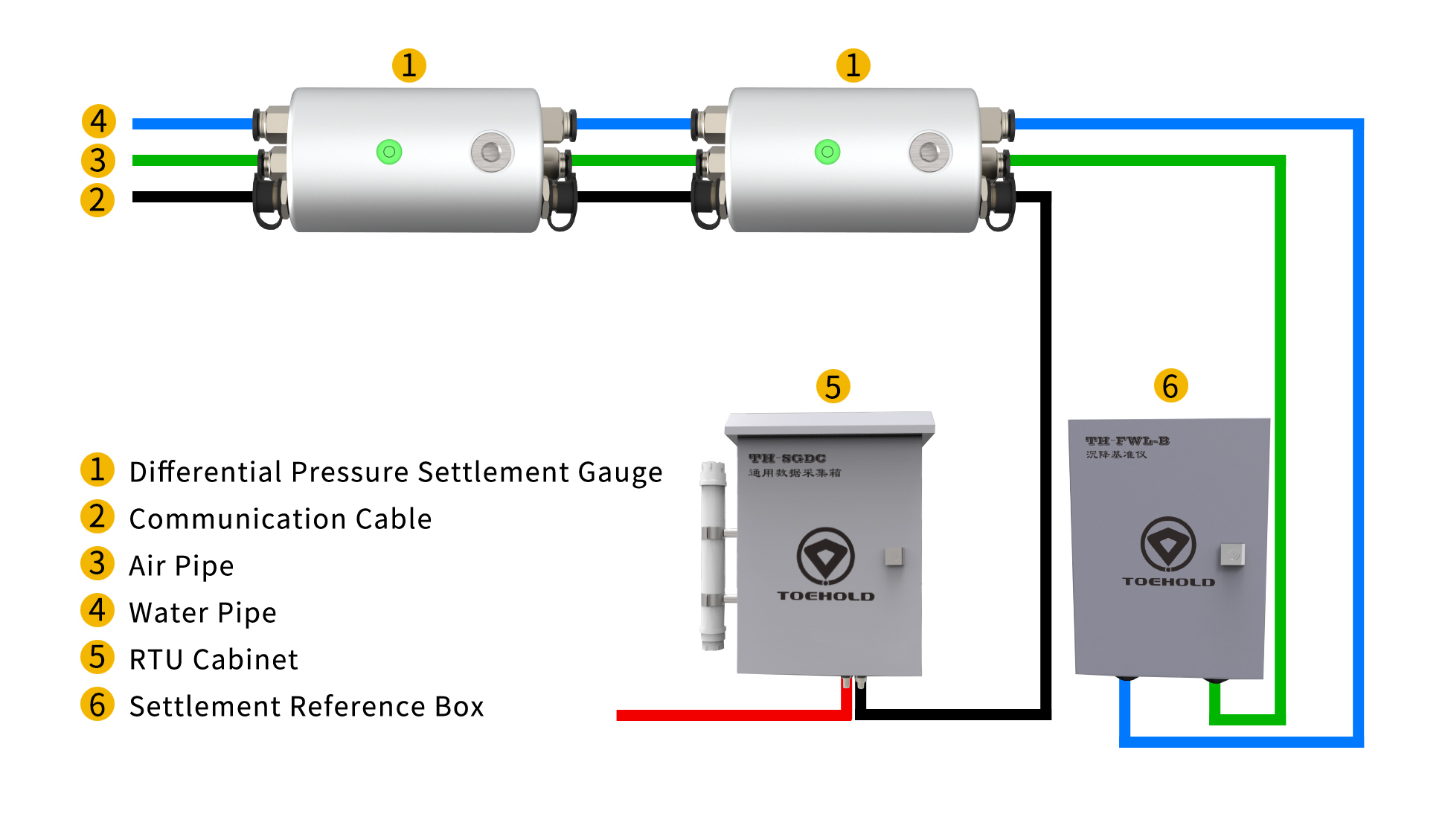

System Architecture Diagram

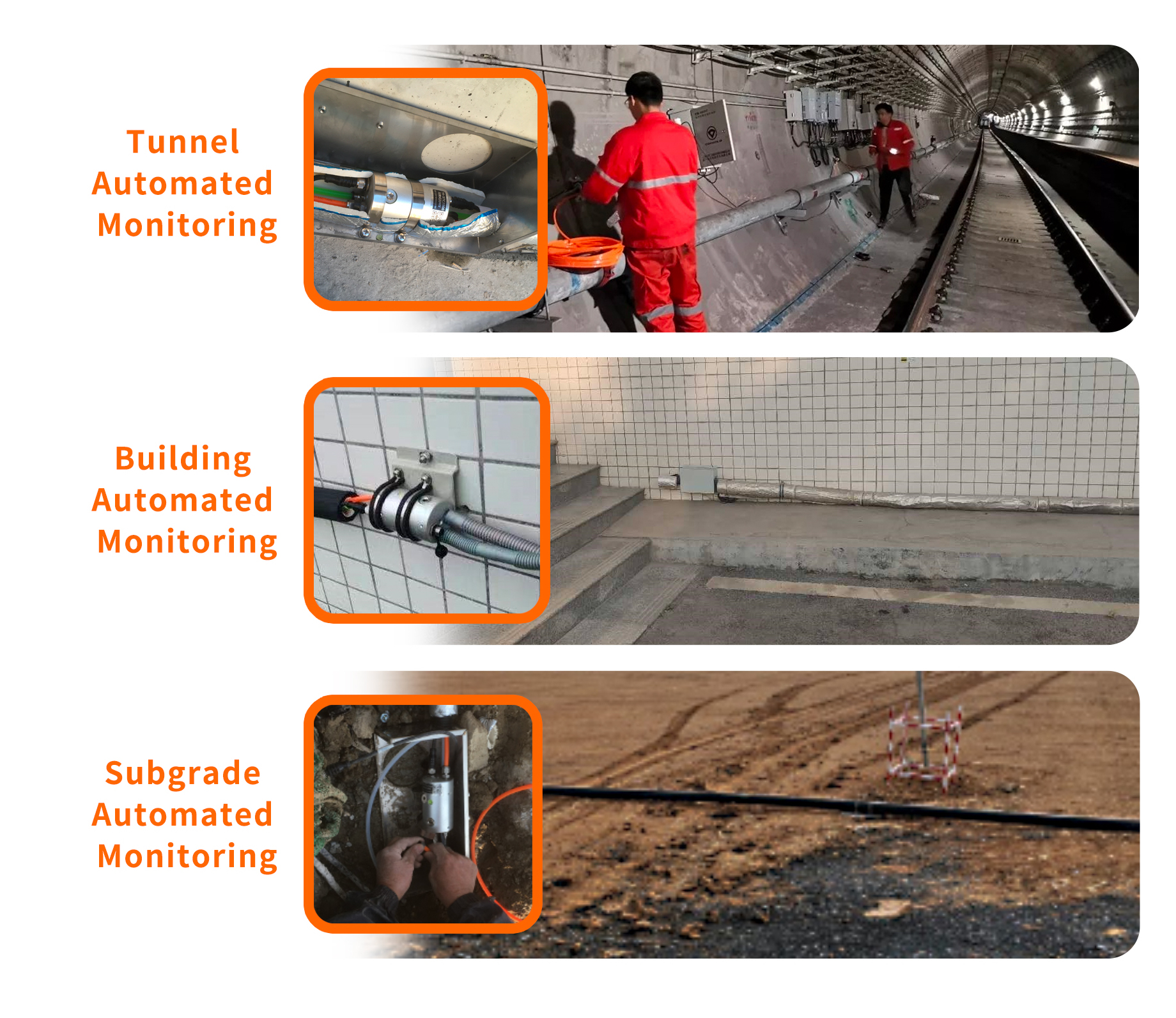

Main Application Scenarios

Click the link below to view the full product introduction:

压差式沉降仪TH-STC2000
