Integrated Settlement and Inclination Gauge

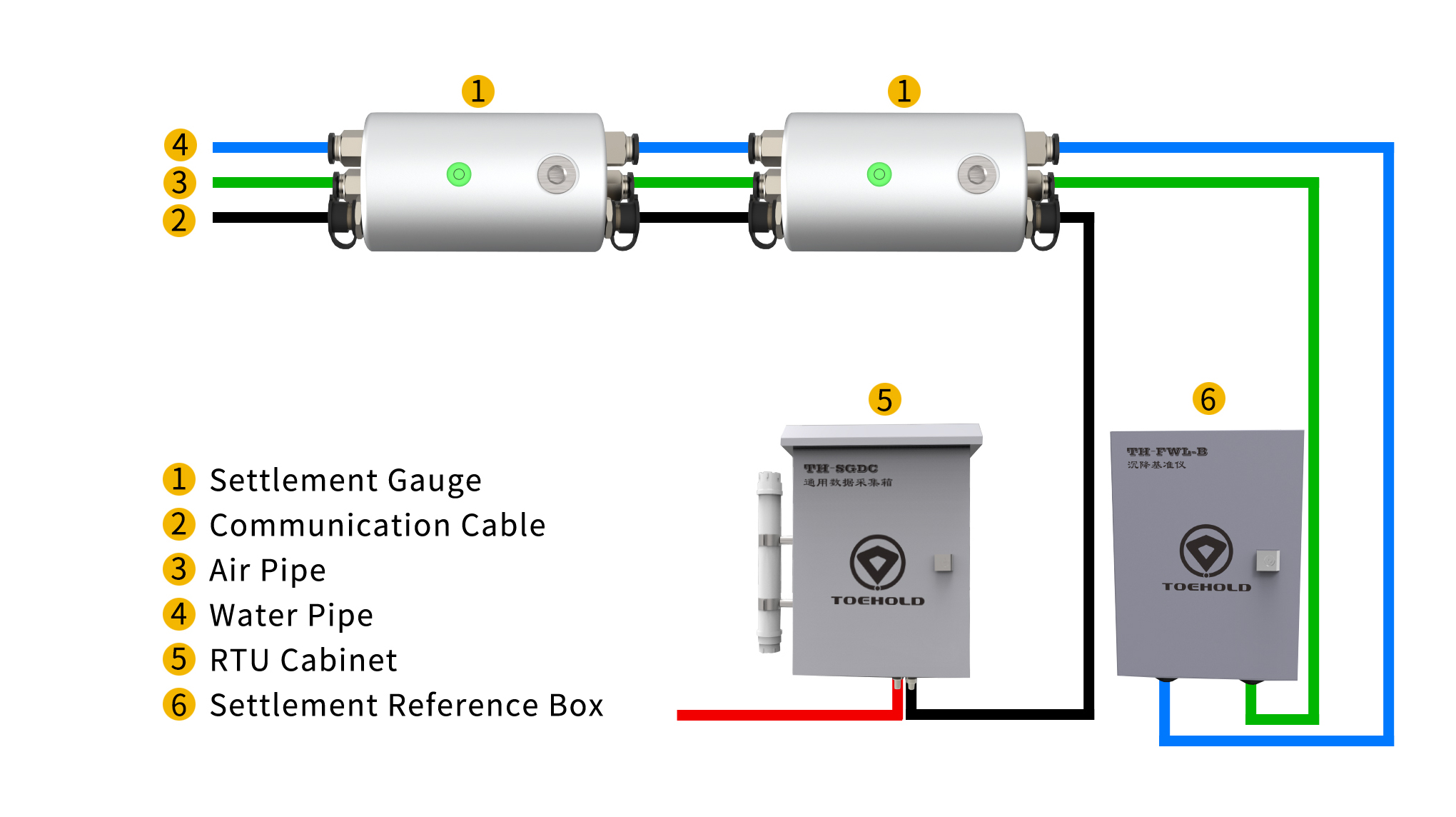

The integrated settlement and inclination measurement system mainly consists of an integrated settlement and inclination gauge (equipped with built-in pressure and inclination sensors), connecting cables (including data bus, water pipe, and air pipe), an settlement reference box, and a RTU cabinet.

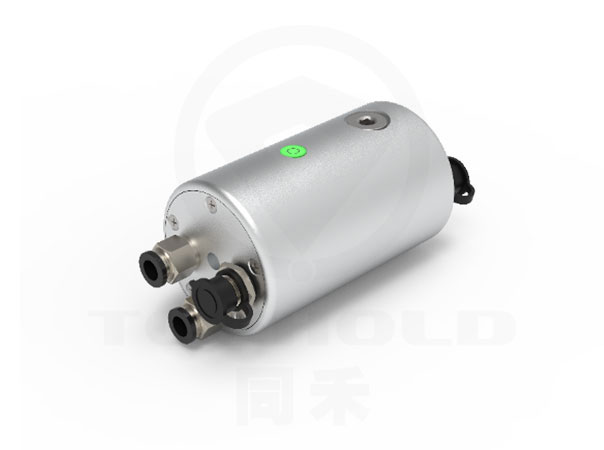

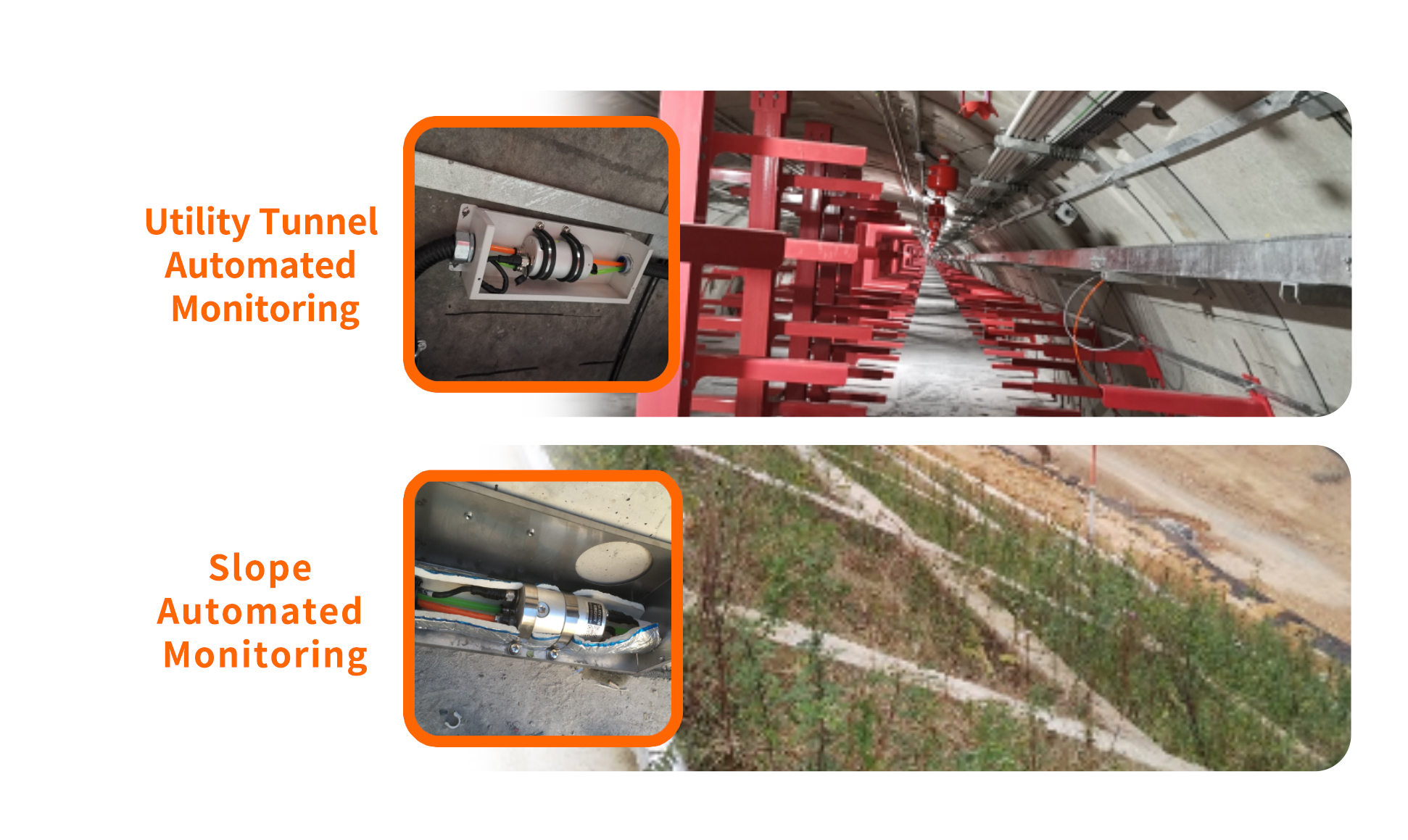

The integrated settlement and inclination gauge is internally fitted with an industrial-grade pressure sensor and a MEMS inclination sensor, adopting the differential pressure principle. It can be installed on the surface of structures or buried deep in soil, and is suitable for settlement and inclination monitoring of various structures such as buildings, slopes, tunnels, and roadbeds.
